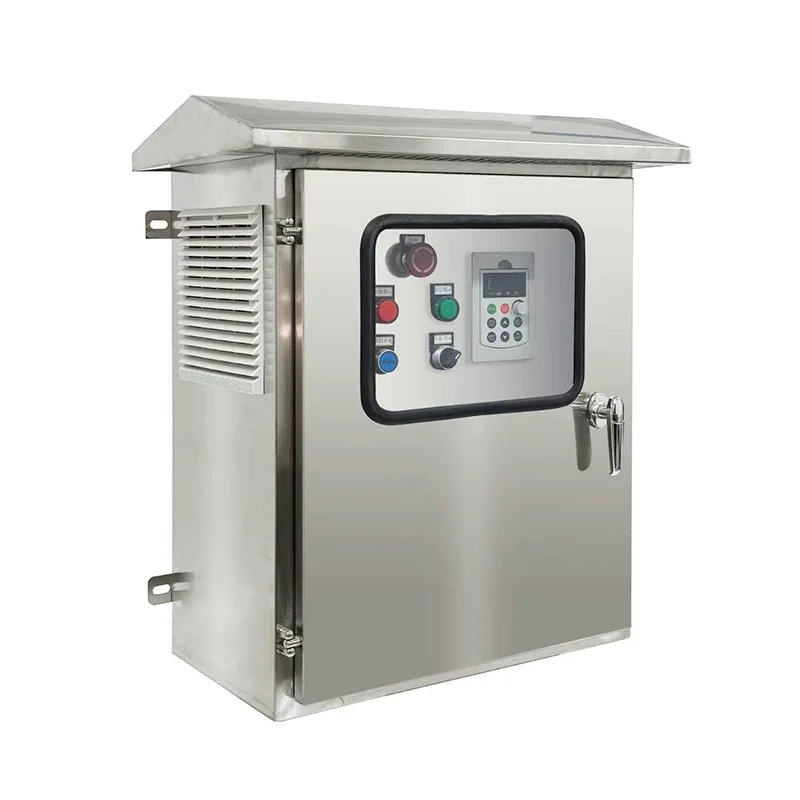

Eguzki Pumping Inbertsore Kabinetea

IP54 edo handiagoa duen solairuko altzairuzko armairu sendo batean kokatuta, inbertsore-sistema honek potentzia-bihurketa-kate osoa integratzen du - DC sarrerako babesa, MPPT sarrera-kanal anitz, maiztasun aldakorreko disko-etapa, AC irteerako iragazketa eta sistema-kontrolatzaile integrala - guztiak aldez aurretik kableatuta eta fabrikan probatutako eremuan azkar zabaltzeko. Power ratings span from 2.2kW to over 250kW, supporting single-phase and three-phase AC pump motors at standard voltages. MPPT algoritmo aurreratuak % 99ko jarraipenaren eraginkortasuna lortzen du, eta denbora errealean motorraren abiadura dinamikoki doitzen du eguzki-irradiazioa egunean zehar aldatzen den heinean, eguneroko ur-horniketa maximoa bermatuz. Sarrerako aukera hibrido batek AC sare edo diesel sorgailuaren babesko hornidura onartzen du, eta automatikoki aldatzen da uraren irteera mantentzeko lainotz aldietan edo gaueko funtzionamenduan. Sistema integratuaren babesek martxa lehorra, gainkarga, gaintentsioa, azpitentsioa, fase-galera eta zirkuitu laburra estaltzen dituzte, eta erabiltzaileak ezarritako potentzia minimoaren atalase batean oinarritutako loaldi eta esnatze logika automatikoak ponpa eta panelak babesten ditu. Ukipen-pantaila grafikoko HMI batek denbora errealean potentzia, tentsio, emaria eta energia datuak bistaratzen ditu, RS485 eta aukerako GPRS/4G/Wi-Fi interfazeekin urruneko monitorizazioa eta integrazioa SCADA edo IoT plataformetan Modbus bidez. Elektrizitate-osagai guztiak klima-kontrolatutako armairu batean daude kokatuta, behartutako aire-hozte iragaziarekin, gorakada babesarekin eta aplikagarriak diren IEC eta tokiko sareko estandarrak betez.

2.Ideal Applications

Sarearen potentzia fidagarria ez den edo ez dagoenean, urte osorako ur hornidura fidagarrirako diseinatua, Solar Pumping Inverter Cabinet-ek nekazaritzako, komunitateko eta industriako ur-sistemetarako ponpa-kontrol autonomoa eskaintzen du.

Agricultural Irrigation & Farming

Large-scale irrigation schemes, drip-feed systems, and centre-pivot operations in remote farmland are ideal candidates. The inverter drives high-power three-phase pumps directly from solar arrays, delivering maximum flow during peak sunlight hours — precisely when crops need water most. Hybrid input capability allows seamless grid or generator backup during critical growth stages. With no batteries to maintain and a weatherproof outdoor installation, farmers benefit from significantly reduced energy and operational costs over diesel pumping.

Community & Municipal Water Supply

Rural villages, remote settlements, and municipal water authorities can deploy solar-powered borehole pumping to deliver clean drinking water. The inverter's automatic operation — starting at sunrise and stopping at sunset or when the storage tank is full — eliminates the need for daily operator attendance. Remote monitoring via GPRS/4G lets water authorities track pump status, water output, and system health from a central control room, reducing costly site visits. The cabinet's rugged construction protects against dust, insects, and seasonal weather extremes.

Livestock & Remote Ranch Watering

Cattle stations, sheep farms, and remote grazing operations spread across wide areas need reliable water delivery to stock tanks and troughs. The inverter connects directly to borehole pumps, eliminating diesel generator logistics and fuel delivery costs. Solar-powered pumping aligns naturally with summer demand when animal water consumption peaks. Dry-running protection automatically pauses pump operation if the water level drops, preventing costly downhole motor burnout.

Industrial Water Processing & Wastewater

Saretik kanpoko kokapenetan dauden meatze-eragiketak, harrobiak eta industria-lantegiek prozesuko uren hornikuntzarako, ureztatzeko edo hondakin-uren transferentziarako putzuetarako erabil dezakete sistema. The inverter's rugged cabinet construction with dust filtration and active cooling suits harsh industrial environments. Hybrid input integration with existing backup generators ensures continuous operation regardless of weather conditions.

Desertification Control & Environmental Projects

Eskala handiko zuhaitzak landatzea, belardiak leheneratzea eta basamortuko ureztatze-proiektuek urruneko ingurune abegikorretako ur-hornikuntzan oinarritzen dira. Eguzki ponpaketa inbertsoreek funtzionamendu autonomoa eskaintzen dute erregaiaren logistikarik gabe, urruneko monitorizazioak lurralde zabaletan banatutako ponpa gune anitzen kudeaketa zentralizatua ahalbidetzen baitu.

3.Technical Deep Dive

Solar Pumping Inverter Cabinet-ek potentzia-bihurketa, kontrol eta babes-multzo osoa fabrikan probatutako itxitura estandarizatu batean integratzen du, gunearen ingeniaritza murriztuz, martxan jartzea bizkortuz eta epe luzeko fidagarritasuna maximizatuz.

Multi-Channel MPPT and DC Input Architecture

Solar arrays are connected to the inverter via multiple independent MPPT input channels, each with dedicated DC fuses, surge protection devices, and isolating switchgear housed in the cabinet's input section. The MPPT controller continuously scans array voltage across a wide range (typically 460V–850VDC for larger systems) to locate the maximum power point, achieving >99% static tracking efficiency. Dual or triple MPPT channel configurations allow strings with different orientations, tilt angles, or shading profiles to operate at their individual optimum, significantly increasing total daily energy yield compared to single-MPPT designs.

DC-to-AC Conversion and Variable-Frequency Drive

The MPPT-regulated DC bus feeds a high-performance variable-frequency drive stage built around sixth-generation IGBT modules and high-speed DSP control. The inverter synthesises a sinusoidal PWM output with adjustable voltage and frequency (0–50/60Hz or wider), enabling soft-start motor control with no inrush current — essential for protecting submersible pump windings. Advanced V/f control with slip compensation, torque boost, and automatic energy-optimisation curves matches motor characteristics across the full speed range. Output filtering — using DC link chokes, output reactors, and dV/dt filters as appropriate — ensures long cable runs between the inverter and borehole pump without motor insulation stress or bearing currents.

Hybrid Power Input Management

An integrated automatic transfer and synchronisation function accepts an auxiliary AC input from the grid or a diesel generator. The system controller continuously compares available PV power against the pump's required operating power. When solar irradiance falls below a user-defined threshold, the AC input automatically supplements or replaces PV supply — maintaining water output without interruption. AC-only, PV-only, and hybrid priority modes are user-configurable. PV priority mode maximises solar utilisation while using AC only for shortfall coverage, minimising fuel or electricity costs.

Pump-Specific Protection Algorithms

The embedded controller implements a suite of pump-dedicated protections not found in generic VFDs. Dry-running detection monitors motor current, power factor, and frequency in real time, identifying the characteristic low-load signature of an unprimed or dry-run pump within one second of detection, then initiating an automatic shutdown and timed restart attempt routine. Minimum power protection prevents inefficient low-speed operation that wastes water without productive pumping. Sleep mode engages when available solar power drops below a user-set wake threshold, entering a low-power monitoring state and automatically resuming when irradiance returns. Water-full detection from a tank-level float switch or pressure transducer input halts the pump to prevent overflow, independently of the daily solar cycle.

Kabinete Ingeniaritza eta Ingurumena babestea

The floor-standing cabinet is fabricated from galvanised steel sheet with a weatherproof powder-coated finish, achieving IP54, IP55, or IP65 ratings depending on model specification. The cabinet is divided into functional compartments — DC input, power conversion, control, and AC output — with hinged, gasketed doors providing walk-up access to all serviceable components. Tenperatura kontrolatutako abiadura aldakorreko haizagailudun aire bortxazko hozte-sistemak barne-giro optimoa mantentzen du potentzia elektronikarako. Aire harguneek hautsez beteriko nekazaritza-inguruneetarako egokiak diren eraginkortasun handiko iragazkiak erabiltzen dituzte; tropikalizatutako bertsioek estaldura konformatua gehitzen dute PCB guztietan, hezetasun handiko eskualdeetarako. Termostatikoki kontrolatutako kondentsazioaren aurkako berogailu integratuak eskuragarri daude klima hotzeko inplementazioetarako.

Control, HMI, and Remote Connectivity

A door-mounted colour touchscreen HMI provides at-a-glance system status including PV input power, motor speed, output voltage, frequency, daily energy yield, and cumulative water delivery (calculated from pump curves or a flow meter input). Parameter settings are password-protected with multiple access levels. Standard communication interfaces include RS485 (Modbus RTU) for SCADA integration, with optional GPRS, 4G, Wi-Fi, or Ethernet modules for cloud-based remote monitoring. The platform allows remote start/stop, parameter changes, alarm acknowledgement, and data logging — enabling a single operator to manage dozens of dispersed pump sites.

4.Frequently Asked Questions

Q1: What pump types and motor sizes can this inverter drive?

Sistemak AC indukzio-motor trifasikoak eta iman iraunkorreko motor sinkronoak onartzen ditu urpeko eta gainazaleko ponpa konfigurazioetan. Power ratings range from 2.2kW to over 250kW. Aplikazio arruntak putzu sakoneko zulo-ponpak, ponpa zentrifugo horizontalak eta turbina-ponpak dira. Inbertsorearen ahalmena zure ponpa-motorraren izen-plakaren datuekin bat egiten lagunduko dizugu.

Q2: Does the system require batteries?

Ez. Inbertsoreak eguzki-paneletatik zuzenean gidatzen du ponpa, bateria-bankurik behar gabe. Water is pumped during sunlight hours and stored in a tank, reservoir, or header tank — which is far more cost-effective than storing electricity in batteries. 24 orduko ur-hornidura behar bada, aukerako AC sarrera hibridoak sarearen edo sorgailuaren energia har dezake iluntasunean.

Q3: How many solar panels do I need, and how are they connected?

Panel configuration is determined by your pump power, daily water volume target, and local solar irradiance. The inverter's MPPT voltage range (typically 460–850VDC for three-phase systems) defines the series string length. Our sales engineers will calculate the array size and string configuration based on a simple site questionnaire. The cabinet includes a DC combiner section with fused inputs, simplifying array wiring.

Q4: What happens on cloudy days or during low sunlight periods?

The inverter slows the pump motor as solar power decreases, maintaining continuous but reduced water flow. If power drops below the user-set minimum threshold, the system enters sleep mode and periodically checks for recovered irradiance. Sistema AC sarrera hibridoaren aukerarekin hornituta badago, sarearen edo sorgailuaren potentzia automatikoki eguzkia gehitzen edo ordezten du irradiazio baxuko aldietan.

Q5: What protection is in place for the pump?

Comprehensive protection algorithms cover dry-running, overload, overcurrent, overvoltage, undervoltage, phase loss, short circuit, and over-temperature. Dry-running detection is particularly critical for borehole applications; the controller identifies a low-load condition typical of a dry pump within seconds and shuts down before motor damage occurs, then initiates an automatic timed restart cycle.

Q6: Can the inverter be installed outdoors?

Bai. Armairua IP54, IP55 edo IP65 kalifikazioa du zehaztapenen arabera, eta kanpoko instalazio iraunkorrerako diseinatuta dago. Iragazizko aireztapena, ate zigiluak eta UV-ren aurkako estaldura ditu. Muturreko inguruneetarako, aukera osagarriak daude, hala nola, eguzki-oholak, hautsaren iragazketa hobetua eta kondentsazioaren aurkako barruko berogailuak.

Q7: How is the system monitored and controlled remotely?

RS485 Modbus RTU estandarrak SCADA edo HMI lokalen integrazioa ahalbidetzen du. Aukerako GPRS/4G, Wi-Fi edo Ethernet moduluek hodeian oinarritutako urruneko monitorizazioa ahalbidetzen dute web-atari edo aplikazio mugikor baten bidez. Denbora errealeko egoera ikus dezakezu, alarma jakinarazpenak jaso, datu historikoak deskargatu eta parametroak urrunetik doi ditzakezu. Hau bereziki baliotsua da eremu geografiko sakabanatuan dauden guneetarako.

Q8: Zein mantentze-lan behar du kabineteak?

Ohiko mantentze-lanak gutxienekoak dira: hiru hilean behin aire-iragazkiak garbitzea edo ordeztea, kableen konexioen eta ateen zigiluen ikuskapena eta babes-gailuen urteko proba funtzionalak. Armairuaren aurrealdeko sarbidearen diseinuak esan nahi du osagai guztiak - fusibleak, kontaktoreak, kontrol-PCBak eta potentzia-moduluak - itxitura kendu gabe eskura daitezkeela.

5.A Regional Agricultural Authority — Large-Scale Solar Irrigation Deployment

Aurrekariak

A government agricultural development authority in a semi-arid region of Sub-Saharan Africa planned to replace diesel-powered irrigation pumps with solar energy across multiple farming cooperatives. The project targeted 20 borehole sites spread across a wide geographical area, each supplying water for drip-irrigated horticulture and field crops. Diesel fuel logistics accounted for over 60% of operating costs, and generator breakdowns frequently interrupted irrigation during critical growing periods.

Erronka

Gune bakoitzak antzeko profil bat aurkeztu zuen: lehendik zegoen 15kW-tik 45kW-ko zundaketa-ponpa urperagarri trifasiko bat, sare-konexiorik gabeko urruneko kokapen bat eta eguzki-irradiazio gorenarekin bat egiten zuen urtaro lehorra. Agintaritzaren eskakizunak zorrotzak ziren:

●  Zero battery dependency to minimise capital and replacement costs

●  Uraren bolumen maximoa emateko gaitasuna eguerdiko orduetan, laboreen lurrunketa altuena zenean

●  Ur-emanaldi aldakorreko zuloetan lehorra ibiltzearen aurkako ponpa urperagarri garestientzako babesa.

●  Eskualdeko egoitzatik 20 gune guztien urruneko monitorizazio zentralizatua

●  Eraikuntza sendoa, urte osoko hautsari, sasoiko euriei eta 45 °C-ra iristen diren giro-tenperaturari eusteko.

Why Solar Pumping Inverter Cabinets?

Armairu estiloko inbertsore irtenbidea guztiz integratuta eta aurrez probatutako entregagatik hautatu zen. Each cabinet arrived on site pre-wired with DC input protection, MPPT modules, the VFD drive stage, output filtering, and the system controller — requiring only connection to the PV array and the pump cable for commissioning.

Multi-channel MPPT allowed each site's solar array to be divided into strings oriented slightly east and west, extending effective pumping hours beyond a pure south-facing configuration. The hybrid AC input option was specified for the two largest sites, allowing a small backup generator to supplement during extended cloudy periods or for occasional night-time irrigation.

Crucially, the pump-specific dry-running protection gave the authority confidence that their existing borehole pumps — a significant sunk cost — would be safeguarded. The automatic sleep and wake logic meant no operator attendance was required daily; the system started automatically at dawn and stopped when the storage tanks signalled full.

Hedapena

Twenty Solar Pumping Inverter Cabinets ranging from 18.5kW to 45kW were deployed across the cooperating farming communities. Each cabinet included dual MPPT channels, the hybrid AC input option on the two largest units, and integrated GPRS remote monitoring connected to the authority's central SCADA platform. Installation and commissioning were completed by a local electrical contractor over a three-month dry-season window. Existing borehole pumps were retained and connected directly to the new inverters.

Emaitzak

●  Dieselaren erregaiaren kostuak ia zerora jaitsi ziren 20 guneetan, eta sorgailuaren babeskopiak urteko funtzionamendu-ordu osoaren % 2 baino gutxiagotan parte hartu zuen.

●  Water delivery volumes matched or exceeded the diesel-pumping baseline, with the extended MPPT window adding approximately 1.5 extra effective pumping hours daily.

●  Ez da ponpa-motorraren matxura bakar bat ere gertatu funtzionamenduaren lehen 18 hilabeteetan, abiarazte leuneko kontrolari eta lehorreko martxa babesari zor zaio.

●  The authority's engineers monitored all 20 sites from a single dashboard, receiving automated SMS alerts for any fault condition, significantly reducing site-visit costs.

●  The success of this initial deployment has led the authority to allocate funding for an additional 35 cabinet systems in the next phase, expanding solar irrigation to new farming communities.
